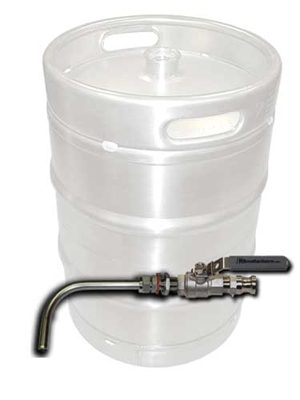

• Note, this kit does NOT include a hose barb or camlock type F as shown in the pictures. Please select a hose connection fitting from the accessory list on the right.

Install Requirements:

• Drill a clean 13/16" (ideal) or 7/8" (a little loose but OK) diameter hole in your keg taking care to avoid any wall contours that may prevent the silicone gasket from sitting flat on the inside wall of the vessel. Remove the thin locknut and SS washer from the assembly insert through the hole from the inside (the gasket goes inside). Then slide the metal washer on and thread the locknut on until snug. Do not overtigten. During leak testing, if you get a few drops of liquid, snug the locknut another 1/8th turn and check again.
• The last step is wrapping the end of the threads with some teflon tape and then a ball valve of your choice. Note: the ball valve will NOT make contact with the exterior locknut in this design. The seal and locknut assembly is completely separate from the ball valve attachement. You will see a section of threads between the nut and ball valve and this is normal.
• The dip tube height may need to be trimmed in some cases. In a hot liquor tank, you want the opening of the tube to sit about 1/8" off the bottom. In a boil kettle, you can rotate the diptube so that the opening is about 3/4" off the bottom offset from center to leave some trub in the center dish. To leave even more behind, reverse the diptube so the short end is in the compression fitting. This is shown in the secondary image on this page.
