High Flow Elbow Barb
High Flow Elbow Barb

Our Price: $7.00

Quantity in Stock:764

Free Shipping
Product Code: ELBARB
Qty:

Description

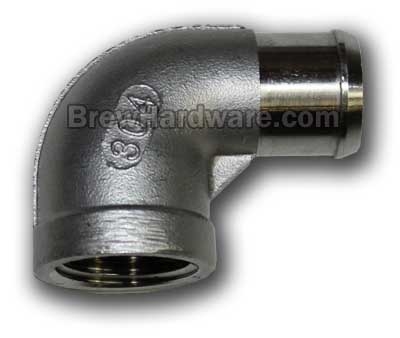

This 304 SS elbow has 1/2" NPT female threads on one and and an over-sized hose barb on the other. The barb ID is 5/8" and the OD is 3/4". he Our 1/2" ID silicone tubing will just barely stretch over the barb so it's a nice snug fit. We use this fitting in our camlock BL kit and it's also used to make an inexpensive diptube in our weldless pot bulkheads.

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 14 Click Here to Write a Review »

  0 of 0 people found the following review helpful:

5 of 5 April 20, 2020
Reviewer: EchtBier from Potomac Falls, VA United States
Great quality, snug fit for hose - no need for a clamp.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 September 21, 2018
Reviewer: Andrew Weldon from litchfield, OH United States
Love it, a great improvement on the ground elbows I was using for full flow I got back in ~2011ish

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Nice piece- hope it helps the trub dam work better March 5, 2017
Reviewer: STEVE MICELI from Holmen, WI United States
Have not tried this yet with the trub dam, but it works nicely as the outlet for the false bottom kit  I bought here.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Great Quality December 21, 2016
Reviewer: CJ from Fredericksburg, VA United States
Worked as advertised.....No problems or issues!!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 No more thread cuts in silicone tubing! July 30, 2016
Reviewer: day_trippr from Stow, MA United States
I've been using SS street elbows on my camlocks to avoid pinched hot-side tubing, and they work ok, but the threads tend to chew up silicone tubing. These elbows solve that problem, plus they reduce flow restriction with the wider bore ID.

Was this review helpful to you?

View All Customer Reviews
