Hot Pod Kettle Element Enclosure 2ETC 2"TC enclosure ONLY

Home > Equipment > Electric Brewing > Kettle Element Enclosures >

Our Price: $36.00

Quantity in Stock:64

Product Code: 2ETC

Qty:

Description

Electric Kettle Enclosure with 2" TC flange, no gasket or clamp.

This specific unit features an enclosure with a 2" TC (triclover) flange welded. It assumes you already have a 2" TC flange welded to your vessel and that you will provide a 2" silicone TC gasket and clamp. We have other kits with various accessories included elsewhere on this site.

General info for all TC (triclover) based electrical enclosures:

The matter of enclosing the electrical connection of your heating element has long been the shortcoming of many Do-It-Yourself element installs. Many solutions relied on "potting" the exposed connections with silicone or epoxy which was a bit more permanent than practical. In addition to shielding the connections, another challenge is providing an earth ground point on the metal pieces. Our design solves both of these problems in an aesthetically pleasing and functionally adequate way. We have several options depending on whether you want to weld, solder or use gaskets to install your heating elements.

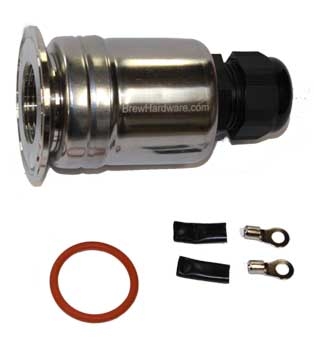

What's included with all enclosure options:

Screw-together canister with ground screw and cord grip.
Electrical Connection Parts: One pair of crimp-on ring terminals to connect your cord (up to 10 gauge wire) to the element, and a single ring terminal to attach an earth ground to the canister, a couple pieces of shrink wrap tubing (shrink it over your crimp terminals with a lighter).

Note!! electric heating element is NOT included with ANY of these kits.

The cord grip included with this kit will accommodate nearly any practical cord diameter from 14/3 SJ to 10/3 SJ cords.

Accessories

Cable, 10/3 SJEOOW High Temp Portable Power Cable by the foot

Cable, 12/3 SJEOOW High Temp Portable Power Cable by the foot

Heating Element, 5500 watt THREADED, All Stainless Steel

Heating Element, Threaded, 1650 watt, 120v, All Stainless Steel

Our Price: $2.99

Add

Our Price: $1.75

Add

Our Price: $37.00

Add

Our Price: $24.00

Add

Average Rating: Average Rating: 4.5 of 5

4.5 of 5 Total Reviews: 10 Click Here to Write a Review »

0 of 0 people found the following review helpful:

Element Enclosure	September 29, 2022
Reviewer: Mark from Everett, WA United States

Well made with great instructions! A must have!

Was this review helpful to you?

1 of 1 people found the following review helpful:

Excellent	June 11, 2021
Reviewer: John Jones from Bonita Springs , FL United States

Was this review helpful to you?

0 of 0 people found the following review helpful:

	September 6, 2018
Reviewer: Robert Owensby from Columbus, OH United States

Exactly as described super easy to install

Was this review helpful to you?

0 of 0 people found the following review helpful:

Great Product	February 17, 2017
Reviewer: Brian from VA- United States

I have seen other heat element enclosures out there, but these are definitely more compact and looks a lot cleaner on my kettle. Very easy to wire with all required items included. No leaks and solid. One issue is the light skin on the side of the grounding screw. The housing can bend if not careful on the amount of pressure you apply to the screw. If this was fixed it would definitely be a 5 star review. Fast shipping as well with the element enclosure packed extremely well! Will be buying from Brewhardware.com again!

Was this review helpful to you?

0 of 0 people found the following review helpful:

Good but could use improvement	September 19, 2016
Reviewer: Michael Leidy from Albany, NY United States

The element enclose looks like it will do the job. The outer cover seems a little flimsy and successfully wiring the ground without causing a short looks like it will be challenging.

Was this review helpful to you?

View All Customer Reviews
